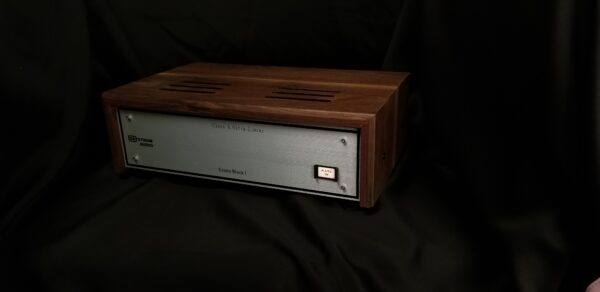

EconoBlock-1 Mono Block Amplifier

NOTE: These are mono blocks and two units are required for stereo.

FEATURES:

• EL84 output tube running in Class-A Ultra-Linear mode for superior sound reproduction.
• Illustrated construction manual.
• Solid hardwood case with tung oil finish.
• Brushed aluminum front panel with silkscreened legends.
• Lighted pushbutton power switch.
• All-metal grounded chassis with threaded anchors and standoffs.

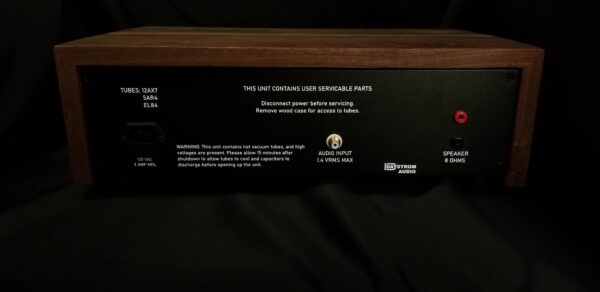

• Power entry module with power cord disconnect and integrated fuse holder.
• Gold plated RCA input jack.
• Banana jacks for the speaker output.
• Point to point printed circuit board.
• Convective cooling system.
• Monoblock construction gives 100% separation of channels, and 100% of the power supply power to one channel.
• Easy access to inside for tube replacement.
• No global feedback.

SPECIFICATIONS:

• Input sensitivity: 1.4 Volts RMS
• Output impedance: 8 ohms
• Output power: 4 Watts RMS
• Frequency response: 40-39,000 Hz
• Primary Power: 120 VAC 60 Hz
